HDMI 5600 Lumens Short Throw Laser Projector 4k For Installation Flexibility

Brand Name : SMX

Model Number : MX-L5600W

Certification : ISO,CE,RoHS

Place of Origin : China

MOQ : 1pc

Price : 750usd/pc

Payment Terms : T/T

Supply Ability : 10000pcs/Monthly

Delivery Time : 5-20days

Packaging Details : Carton

Brightness : 5600 lumens

Projection Size : 30 - 300 inches

Aspect Ratio : 16:10 / 4:3

Keystone Correction : V: ±30° /H：±15° Corner Keystone

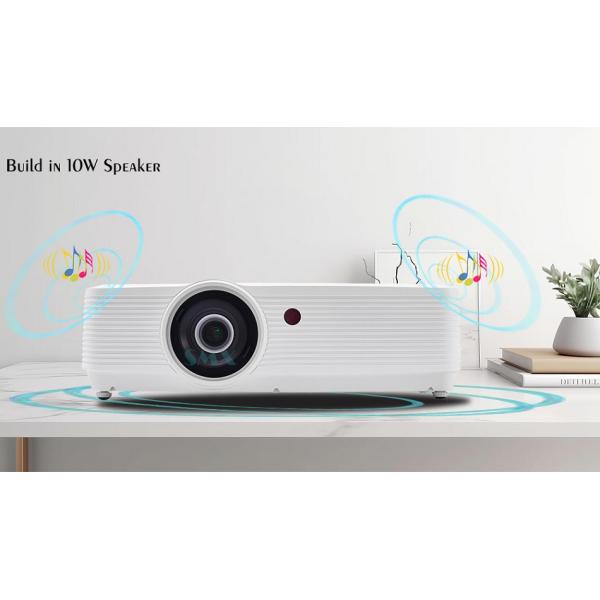

Speaker : Built-in 10W speaker

Resolution : 1280 x 800

Contact Now

3LCD Standard Throw Projector 5600 Lumens WXGA Resolution

Key Features

Brightness of 5600 Lumens
WXGA (1280 x 800) Native Resolution
1.4 to 2.26 Throw Ratio
16:10 / 4:3
Contrast: 10000:1
Len Shift: ±45% / ±10%

3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology

5,600 lumens Color Brightness for accurate, vivid color

WXGA Resolution

1280 x 800 HD widescreen resolution with a bright and colorful that features 5600 lumens of color brightness (color light output) and 5600 lumens of white brightness (white light output). The lens shift is equipped with horizontal and vertical lens shifts.

HDMI connectivity

It features an all-digital, HDMI audio, and video connection, is for HD quality with just one cable and HDBaseT combines HDMI, ethernet, and RS-232 into one cable.

Installation flexibility - up to ±45 percent vertical and ±10 percent horizontal lens shift

Specification

Model No.		MX-L5600W
Specifications
Projection System		3LCD, 3-chip technology
Brightness(Lumens )		5600
Native Resolution		WXGA (1280 x 800)
Aspect Ratio		16:10 (Standard)/4:3 (Compatible)
Lamp Type		USHIO 280W
Lamp Life(H)		3000H(Normal) / 4000H(ECO)
contrast Ratio(Min)		10000:1
Keystone correction		V: ±30° /H:±15° Pincushion/Barrel /Corner
Projection Lens
Zoom/Focus		Manual
Throw Ratio		70"@2.1m; 1.4~2.26 : 1
F-number		F 1.65~2.25
Focal Length		f= 18.20~29.38mm
Zoom Ratio		1.6xoptics
Screen size		1.194m~14.81m (40''~300")
Lens Shift V		±45%(Manual)
Lens Shift H		±10%(Manual)
Contrast Ratio (Min)		10000:1
Interfaces
VGA in		*2
Audio in		*1
YCbCr/component		*1 (share with VGA in 1)
Video		*1
Audio in (L/R)--RCA"		*2
S-Video		*1 (share with VGA in1)
HDMI		*2 (One is Compatible with MHL)
USB- A		*1 (Memory viewer) /WiFi Dongle(optional)
USB-B		*1 (Display)
RJ45		*1 (Display)
VGA out		*1 (Share with VGA IN 2)
Audio out		*1
RS232		*1
RJ45		*1 (Control)
Others
Speaker		1x10W
Power Supply Voltage		100~240V@ 50/60Hz
LAN control-RoomView (crestron)		Yes
LAN control-AMX Discovery		Yes
LAN control-PJ Link		Yes
computer Signal Input		VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac
Video Signal Input		480i, 480p, 576i, 576p, 720p,1080p and 1080iw
Dimension&Weight
Projector Dimension (WxHxD mm)		395x318x128
Net. Weight (KG)		4.45
Standard Accessory
Standard Accessories		Power cord, VGA cable, Remote control, Manual
